Komfort’s single glazed guarding solution, Polar 40, is a frameless silicone jointed glazing and minimal trackwork provides contemporary aesthetics in any working environment, allowing an abundance of light to fill the space to naturally brighten any room.

The 40mm wide trackwork takes 19.5mm and 21.5mm toughened laminated glass, for increased structural stability up to 3.6m high with PVB interlayers or up to 3.9m with SentryGlas® interlayers to act as a barrier over a fall.

SYSTEM SPECIFICATION

Polar 40 can accommodate 19.5mm and 21.5mm toughened laminated glass, offering acoustic performance up to 43dB (RW) and structural performance of 1.5kN/m line loads up to 3.6m high, with +/-25mm deflection.

The system can be combined with Polar 30 using a spacer to create a double glazed system to achieve 53dB (RW). For visual privacy manifestation and graphics are available with this system. All aluminium components for the trackwork will be powder coated to any RAL or BS colour code, please ask for availability. If a specialist finish is required on the aluminium, please contact your local Project Specification Manager or our Technical Department.

Download our Polar 40 Design Guide for more information.

0dB (Rw)
Acoustic rating for single glazed
0dB (Rw)
Acoustic rating for double glazed
0mm
Maximum height
0mm
Maximum module width

Polar 40 Guarding Partitioning at a Glance

Dimensions:
Height – up to 3900mm*
Module width – up to 1600mm
Trackwork Dimensions – 40x32mm

Fire ratings:
N/A

Acoustics:
Single glazed up to 43dB (Rw)*
Double glazed up to 53dB (Rw)*

Structural Performance:
BS 6180:2011 – up to 1.5kNm*

* Depending upon configuration & specification

Deflection head:
+/-25mm

Door options: NA

Glass type options:
19.5mm Toughened Laminated (PVB or SentryGlas® Interlayer)
21.5mm Toughened Laminated (PVB or SentryGlas® Interlayer)

Weight
(exc. nominal head & base)*:

Toughened Laminated with PVB Interlayer:
19.5mm = 49kg/m2

Toughened Laminated with PVB Interlayer:
21.5mm = 51kg/m2

Toughened Laminated with SentryGlas® Interlayer:
19.5mm = 49kg/m2

Toughened Laminated with SentryGlas® Interlayer:
21.5mm = 51kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

  • Kross Glaze

  • Curved Glass

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

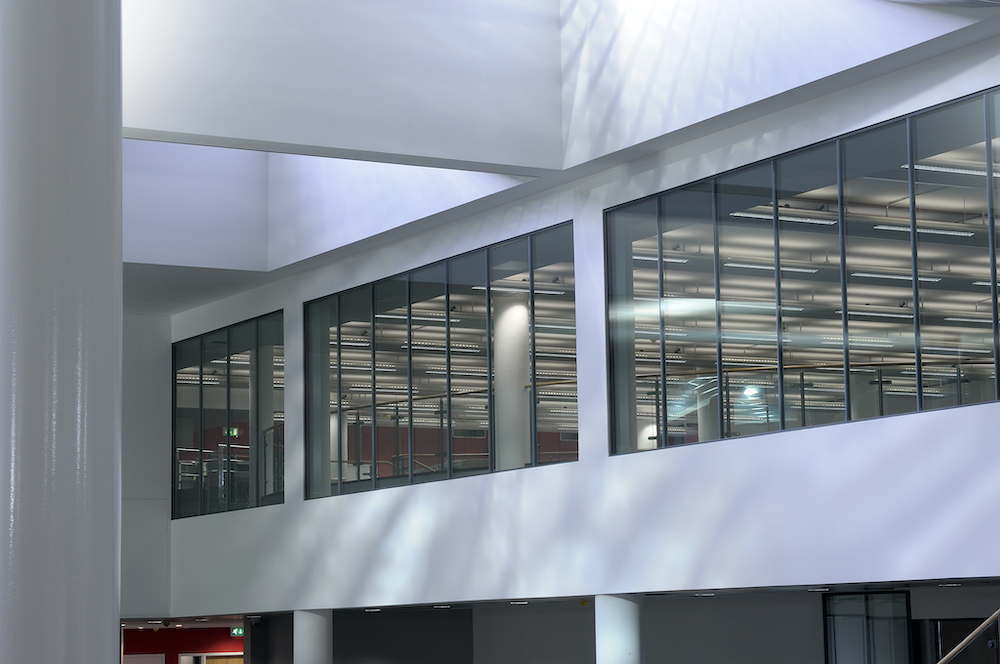

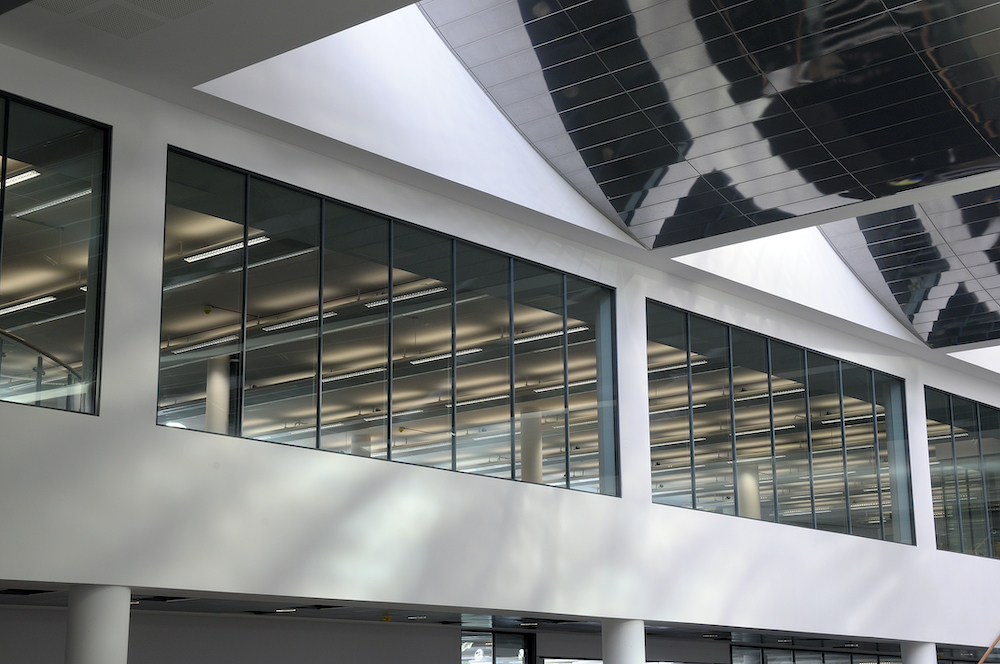

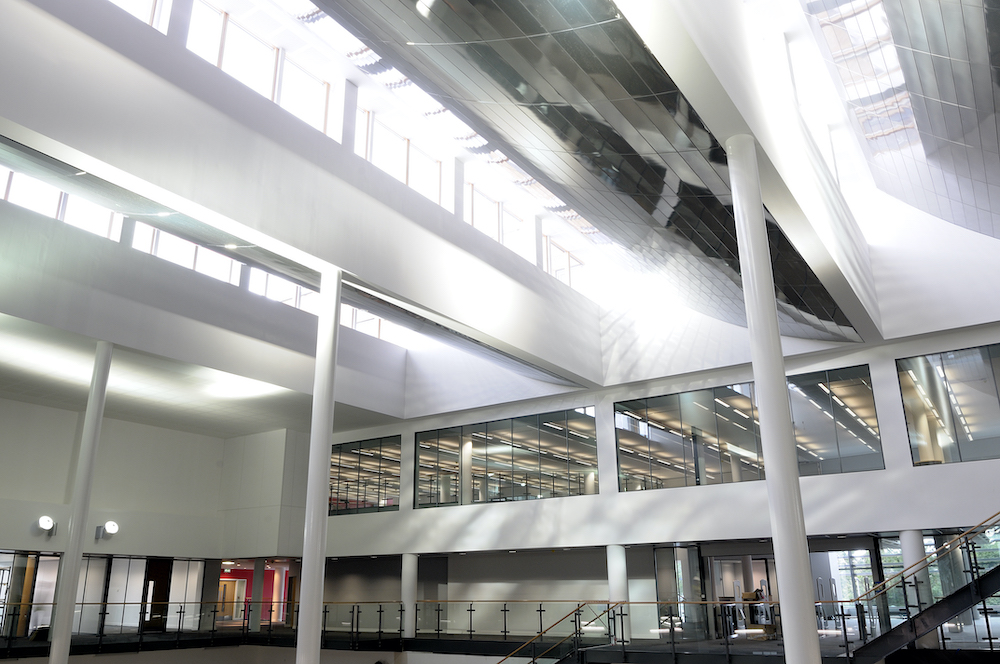

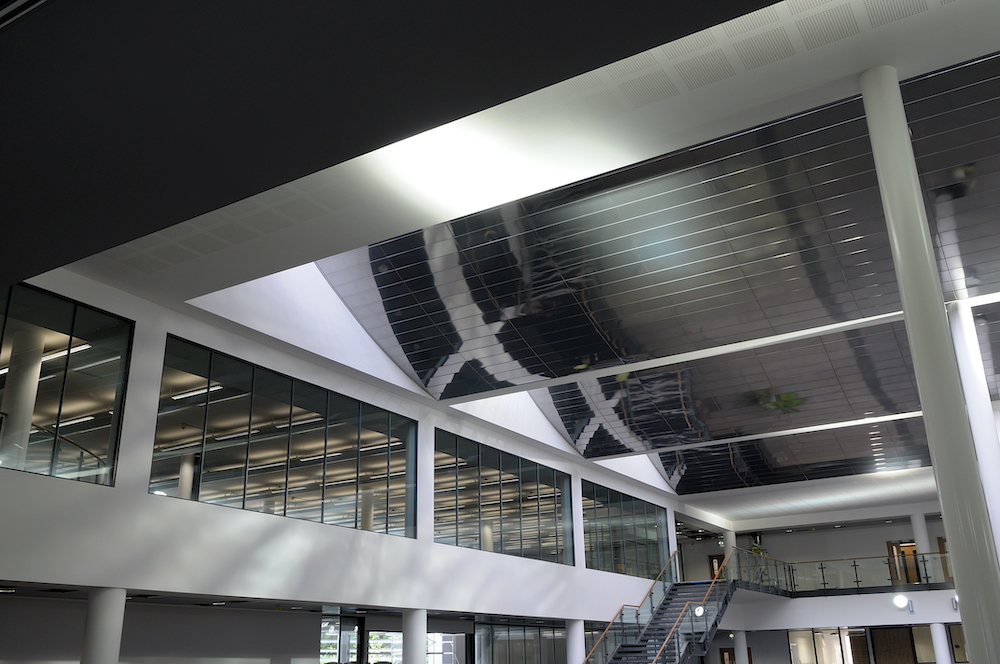

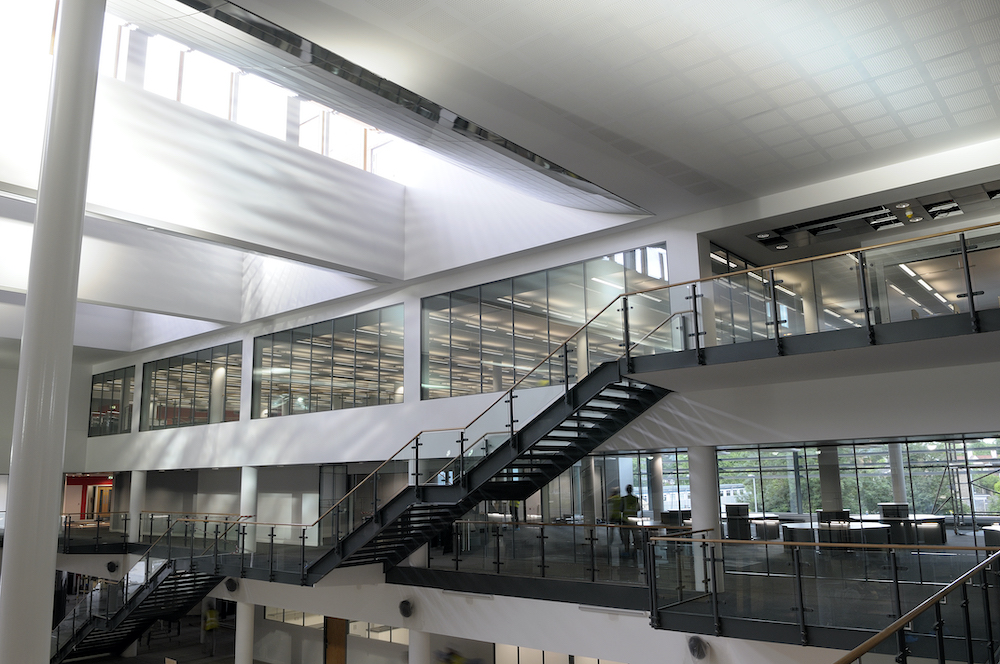

Polar 40 Gallery
