Polar 35 – 35mm Single Glazed Partitioning System

Polar 35 is Komfort’s superior 35mm single glazed office partitioning system which can accommodate a thicker glass to achieve enhanced acoustic and structural performance.

This system offers leading single glazed acoustic ratings and is ideal for areas that require enhanced line loading. Polar 35 creates a contemporary aesthetic in any commercial environment.

SYSTEM SPECIFICATION

Polar 35 is our superior single glazed system which accommodates glass up to 17.5mm, achieving increased line load performance and higher acoustic ratings of up to 41dB (Rw). Similar to Polar 30, this system can be integrated with a stud partition with either Komfire 75 and 100 wrap around reducers, wrap around door frame or a 100mm drywall tape and joint adaptor. Additionally, seamless integration with a stud partition can be achieved using Komfire 100 head detail.

Polar 35 is also compatible with Komfort’s Sonik, single glazed and timber door options. There is also an optional deflection head channel with a built-in tolerance of +/-25mm available. In addition, Kross Glaze applied bars can create an industrial appearance to suit the desired aesthetics. All aluminium components are available in a range of paints and finishes, including any RAL or BS colour code.

Download our Polar 35 Design Guide for more information.

0dB (Rw)
Acoustic rating
0mm
Maximum height
0mm
Maximum module width

Polar 35 Glazed Partitioning at a Glance

Dimensions:
Height – up to 3600mm
Track width – 35mm
Track height – 32mm

Fire ratings:
N/A

Acoustics:
Up to 41dB (Rw)

Structure:
Up to BS 6180 – 1.5kN

Deflection head:
+/-25mm

Door options:
Timber doors
Sonik doors
Single glazed doors

Glass type options:
Toughened – 15mm
Toughened Lam. – 17.5mm
Acoustic Lam. – 16.8mm

Weight
(exc. nominal head & base)*:

Toughened:
15mm = 38kg/m2

Toughened glass:
17.5mm = 44kg/m2

Acoustic glass:
16.8mm = 42kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

  • Kross Glaze

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

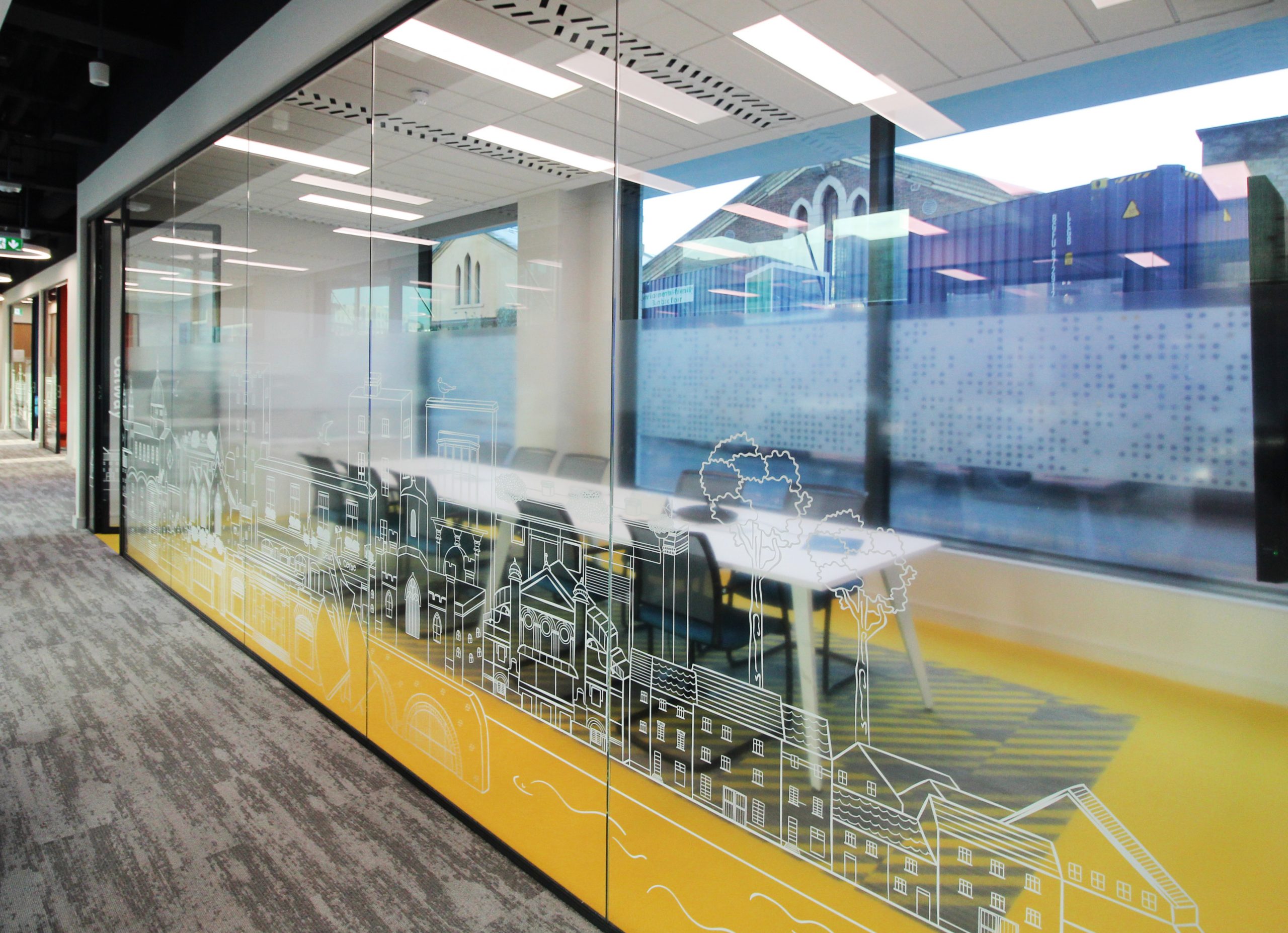

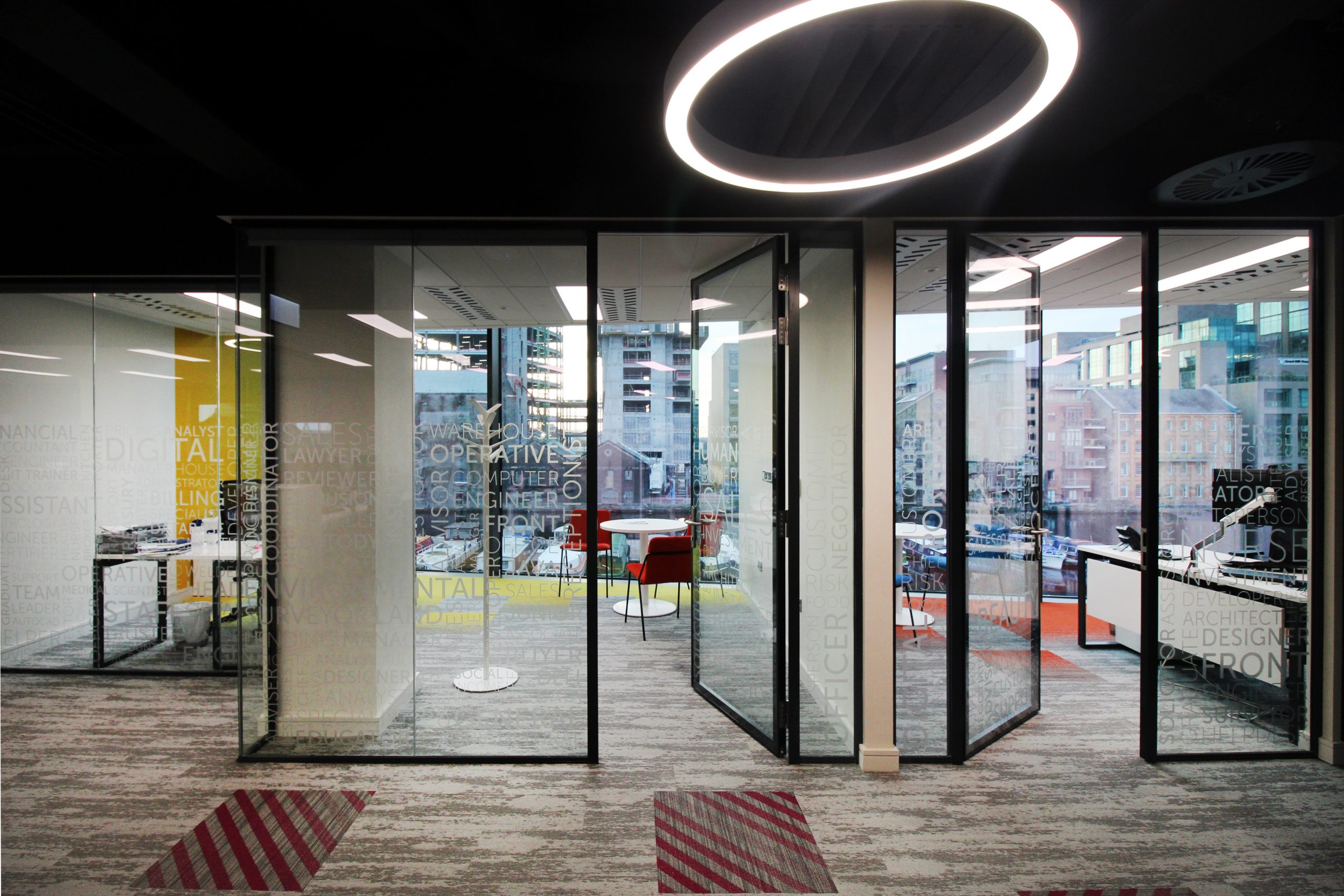

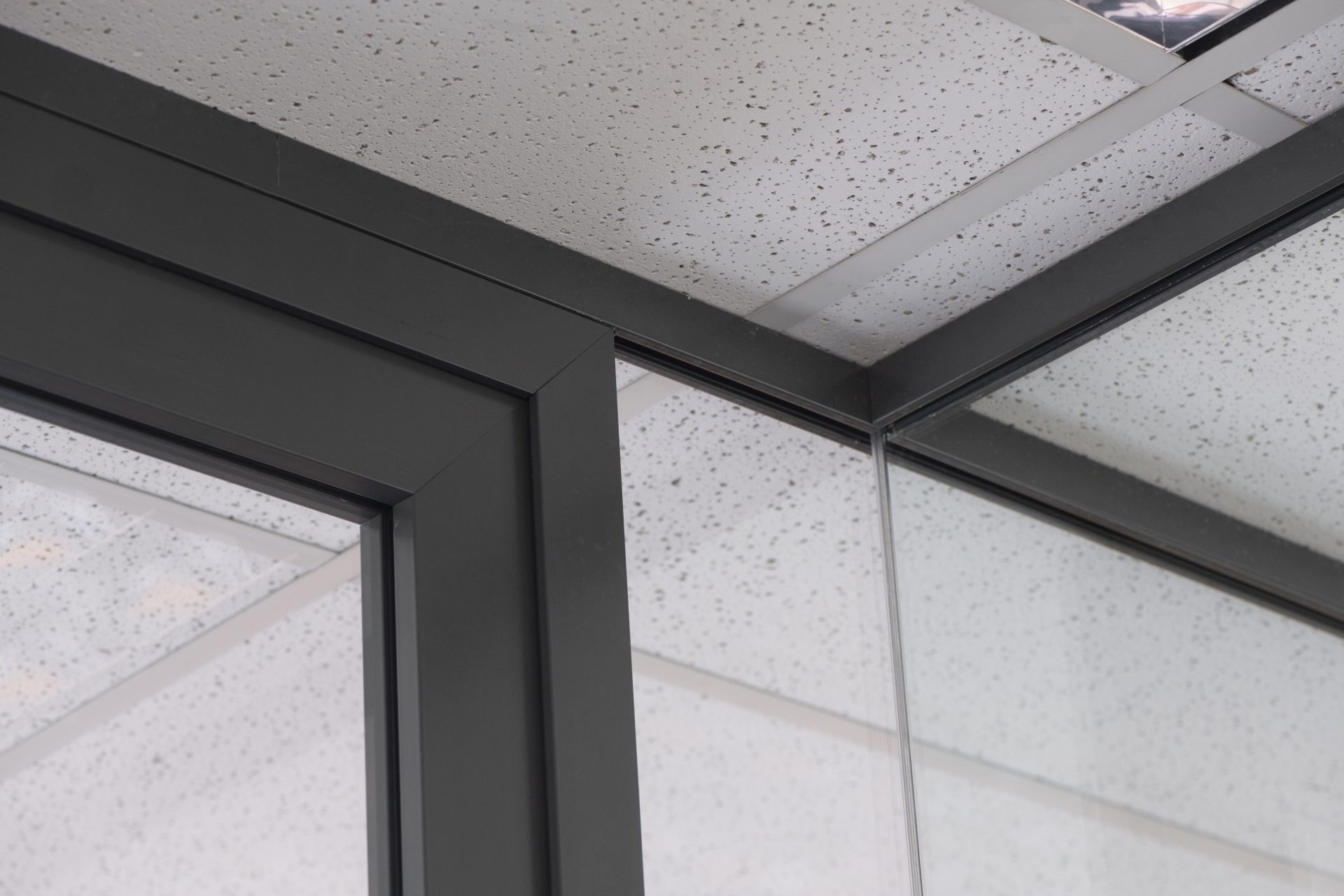

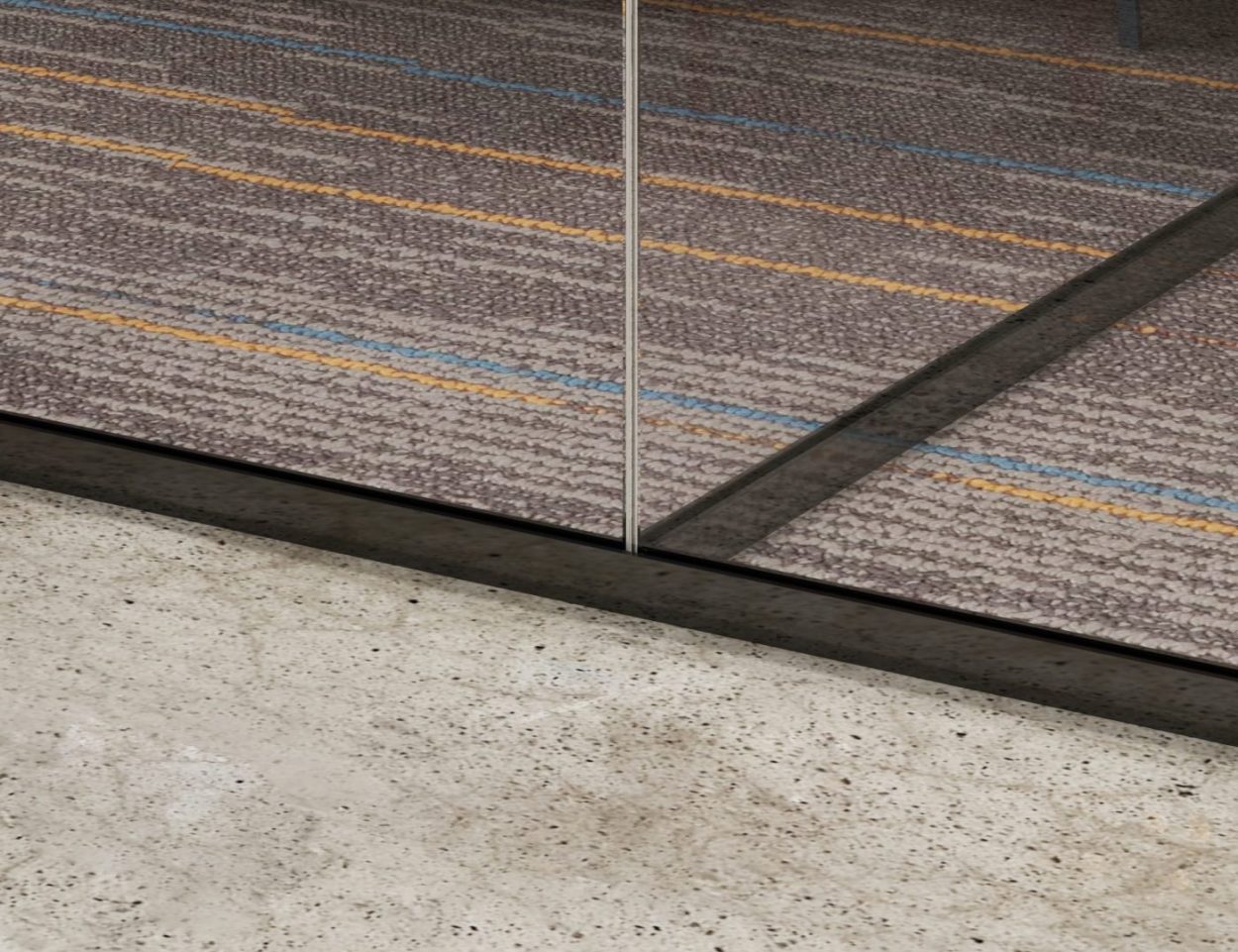

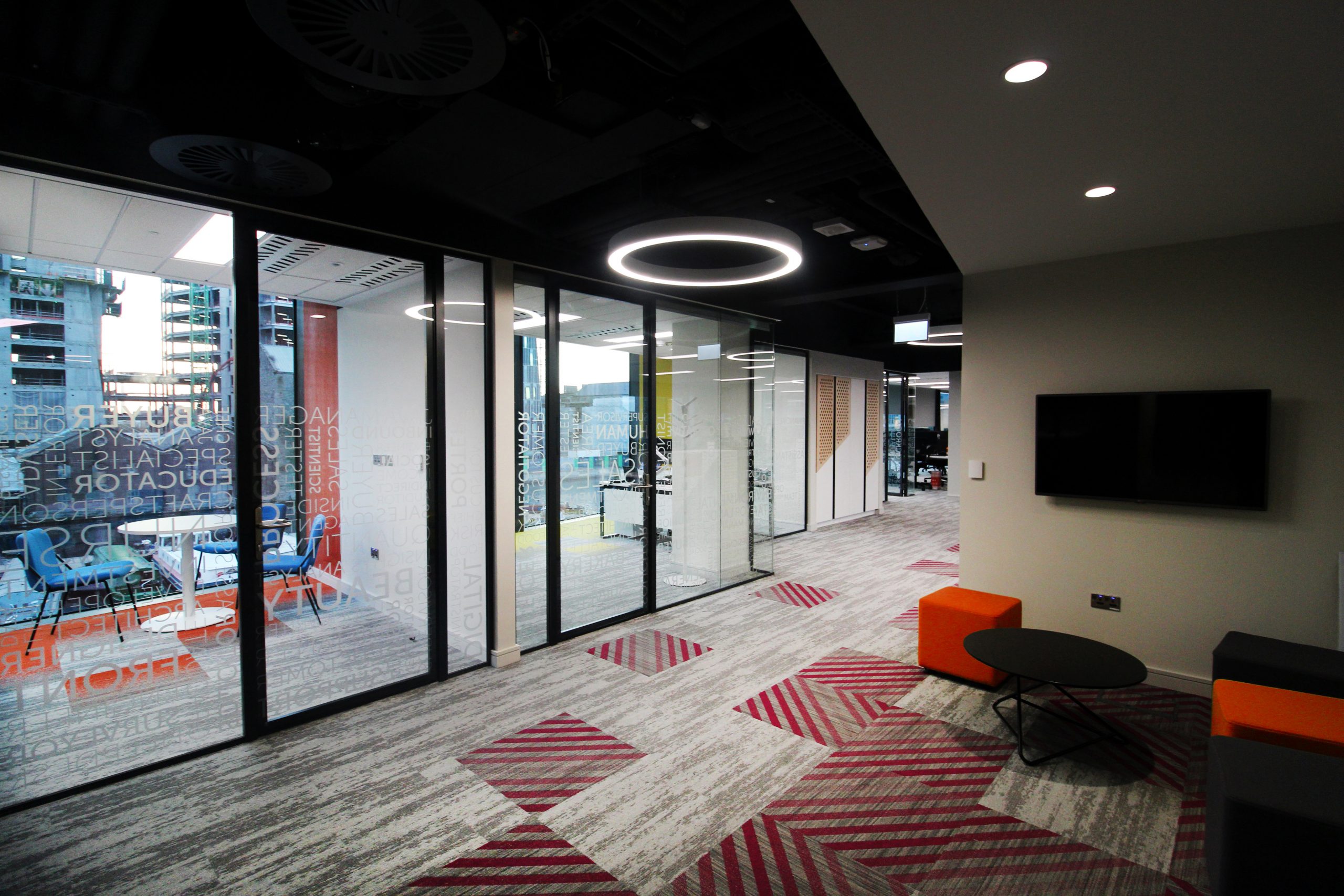

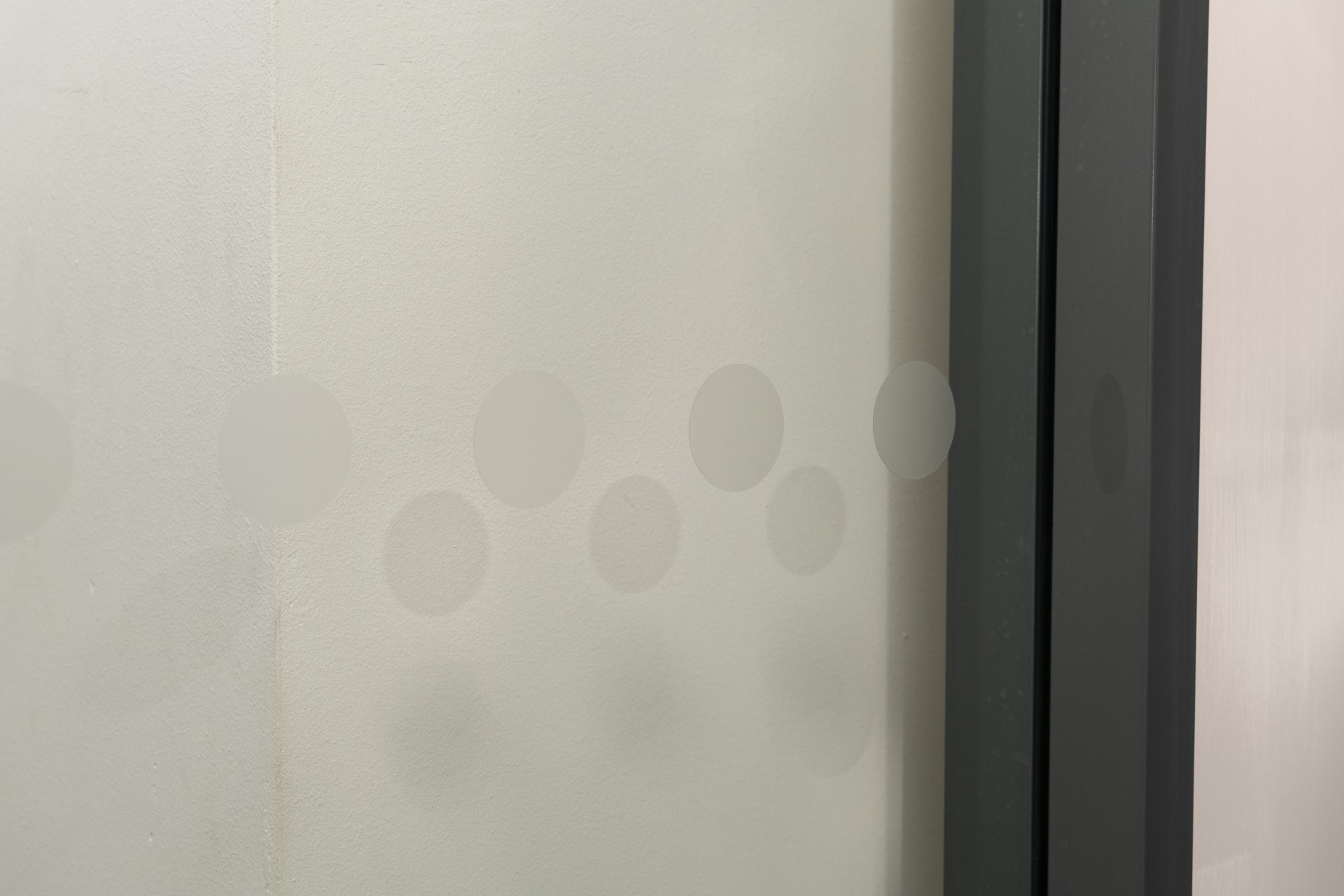

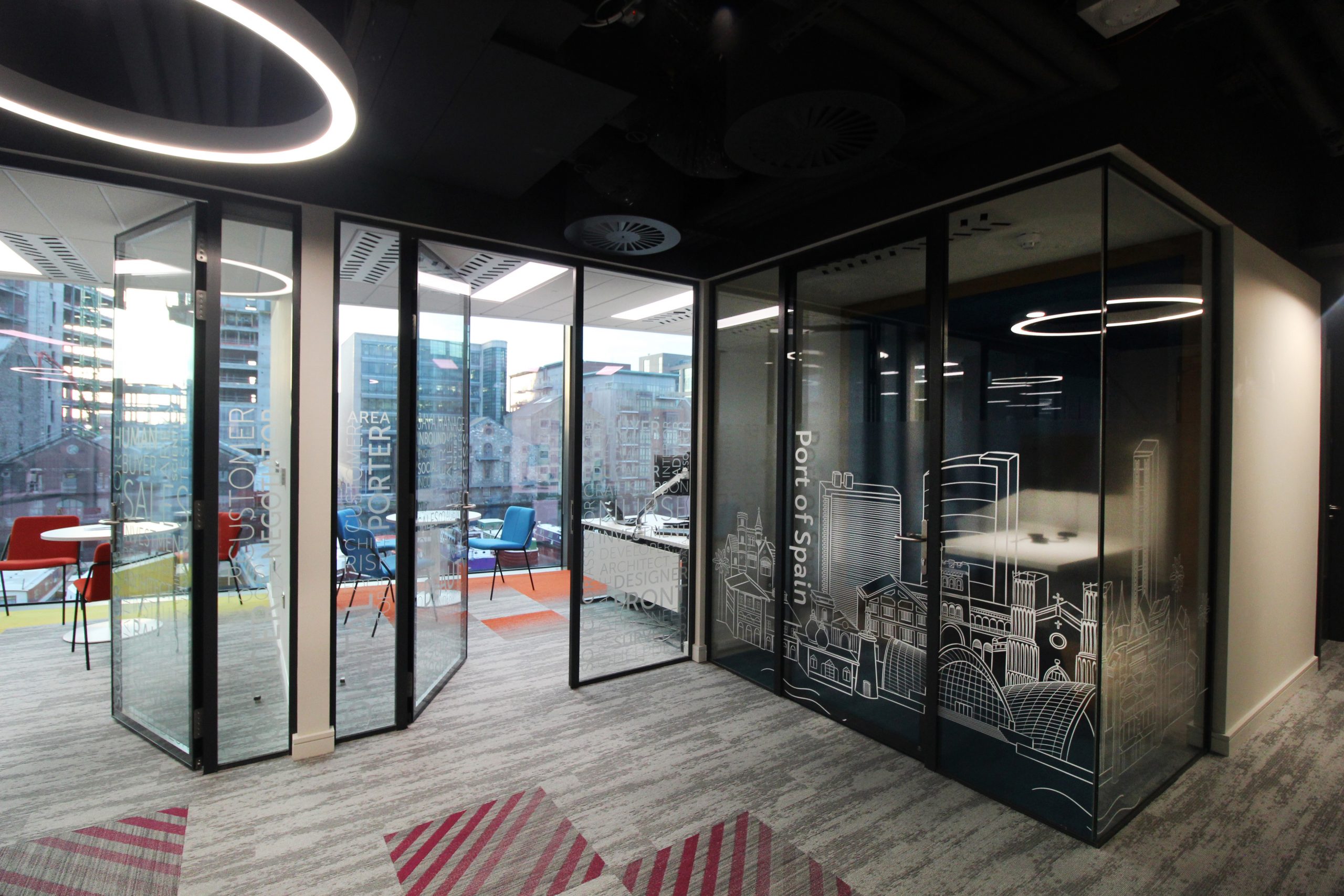

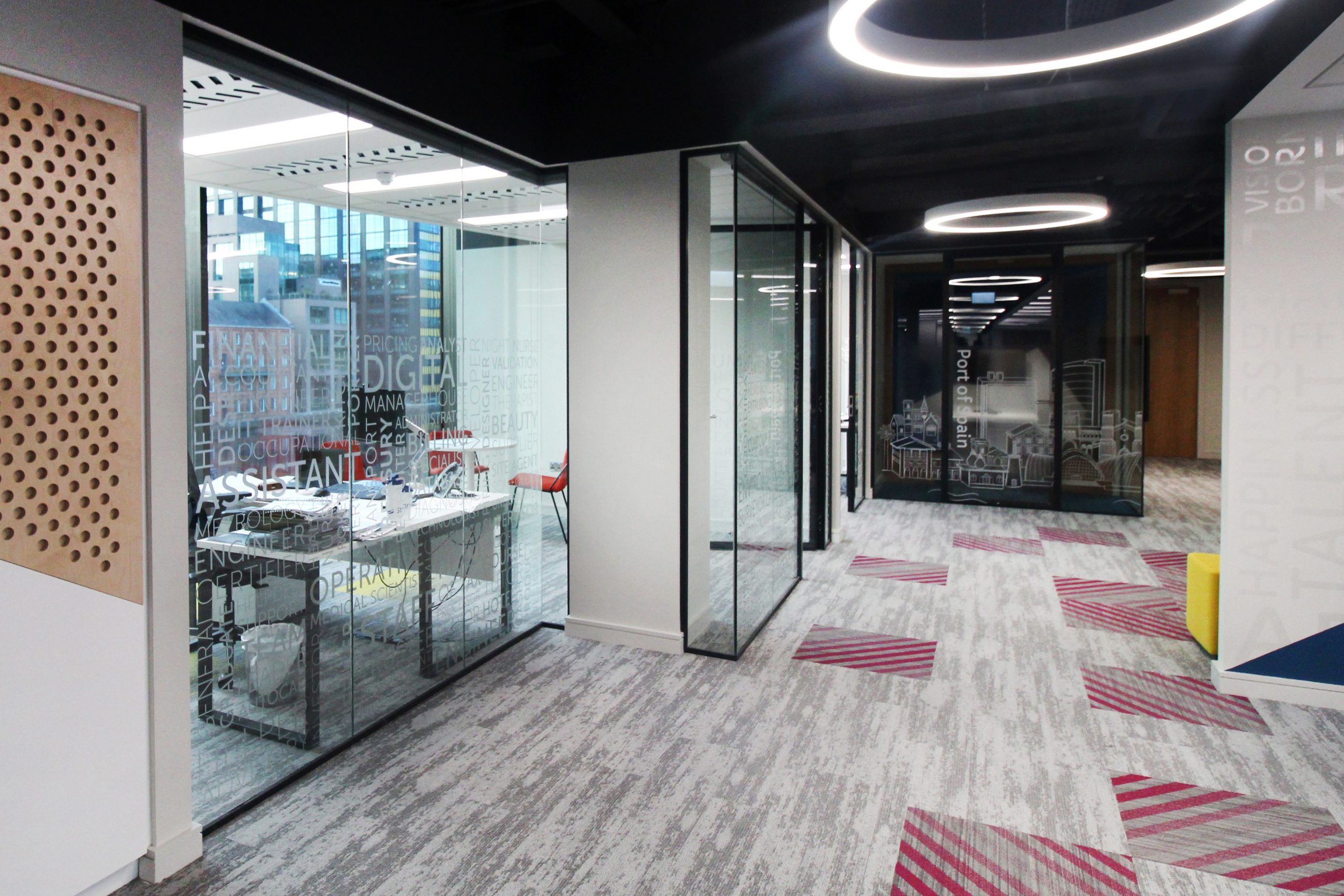

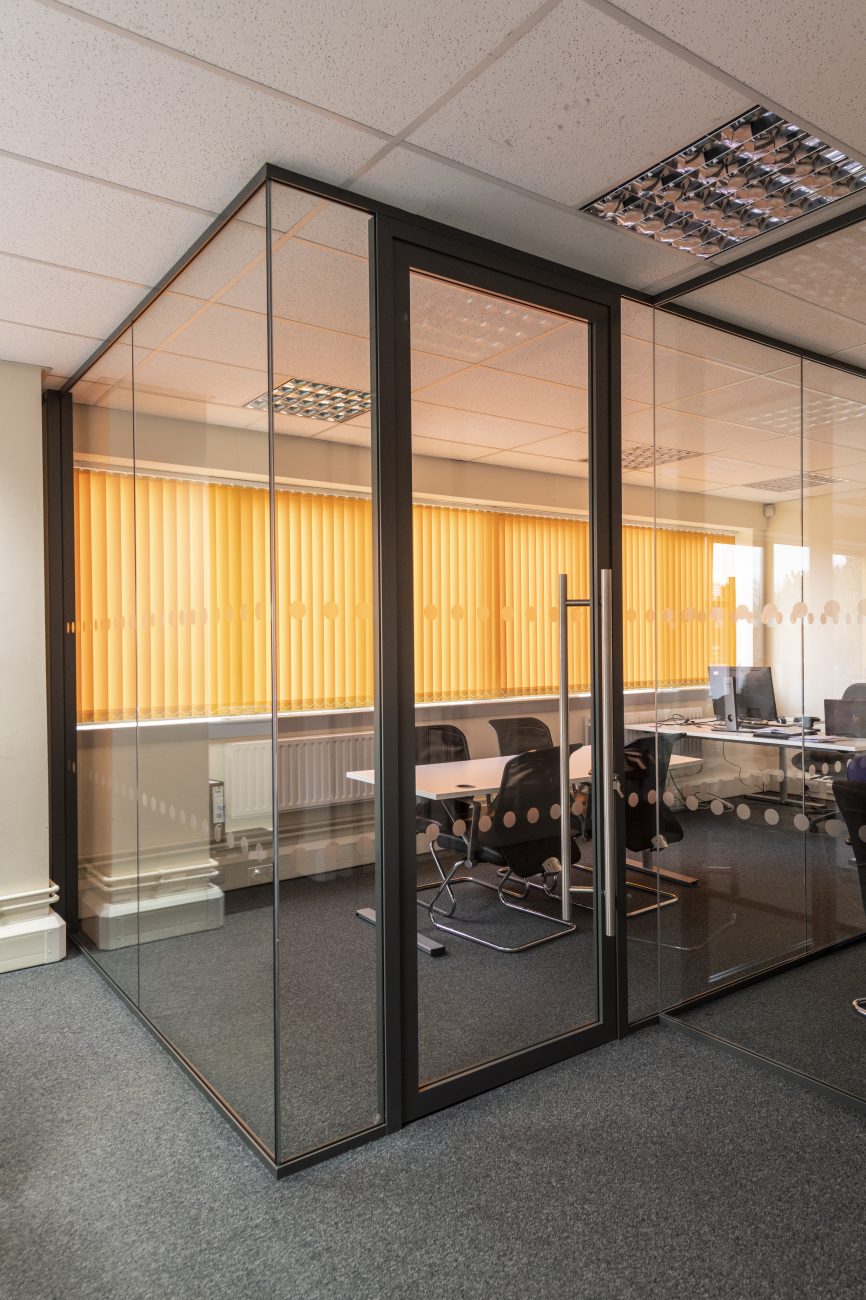

Polar 35 Gallery
